DS6-S = For cables from 2-6mm (0.08"-0.24")

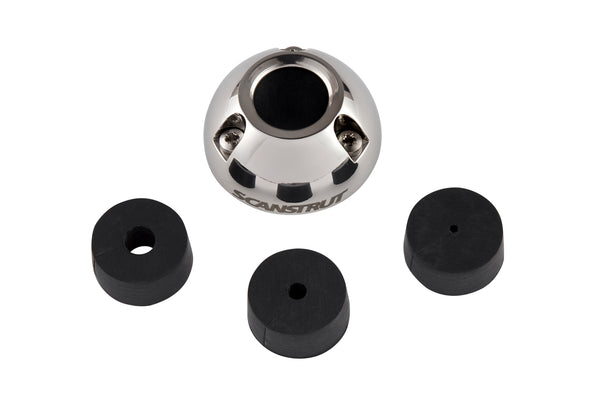

DS16-S = Connectors up to Ø16mm (0.63"). Cables from 2-8mm (0.08"-0.35")
DS21A-S = Connectors up to Ø21mm (0.83"). - Cables from 4-9mm (0.165"-0.35")
DS21B-S = Connectors up to Ø21mm (0.83"). - Cables from 9-14mm (0.35"-0.55")
DS30-S = Connectors up to Ø30mm (1.18"). - Cables from 9-14mm (0.35"-0.55")
DS40-S = Connectors up to Ø40mm (1.57"). Cables from 12-15mm (0.47"-0.59")
FOR WATERPROOF CABLE ROUTING
The only guaranteed and proven watertight installation for your antenna and navlight cables!
The range provides waterproof cable routing and is produced in high impact plastic and 316 stainless steel with options for 16mm to 40mm connectors, making it ideal for almost every installation.
Tapered bung forms watertight seal. All units are supplied with a closed-cell base seal - 100% waterproof. All models have been IPX6 and IPX7 tested and approved.
EASY AND RELIABLE INSTALLATION
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
NO NEED TO REMOVE CABLE CONNECTORS
Split-seal option does not require connector removal during install.
MULTI-FUNCTIONAL DOME SHAPE
Aesthetic dome-shaped profile provides a stronger, impact-resistant design (no sharp edges to hit your foot on!) and outer dome provides additional water shield.
YOUR CHOICE OF MATERIALS
30% Glass-filled Nylon – UV-stable, hard-wearing or 316 stainless version available.
